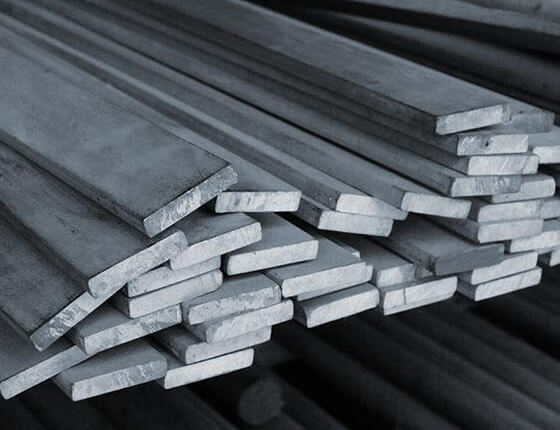

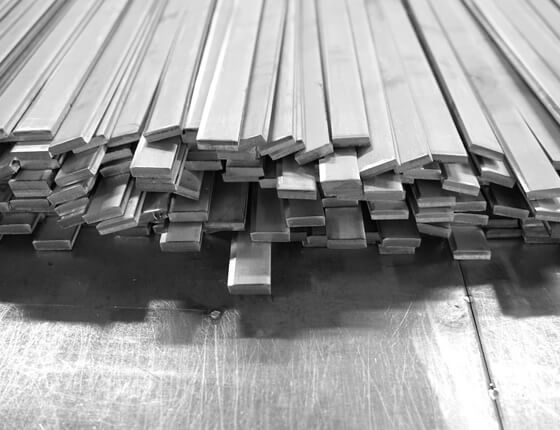

Navdurga steel casting Manufacturer and supplier of a wide range of Mild Steel (MS) Flat Bars. MS Flat Bars are used by Grating manufactures, cable trays, bright bar industries, automobile and auto-ancillaries, Truck trailers, Tippers, Railways, bus body, elevators and escalators, Scaffolding manufacturers, Base plates, Earthing material, Ship building, washers, flanges, clamps and many more engineering industries.
Mild Steel (MS) Flat Bars is available in various sizes, lengths and dimensions. This Flat Bars is examined by quality expert’s team in order to ensure its defect free.
| Size mm. | Weight Kg./m. | Size mm. | Weight Kg./m. |
|---|---|---|---|
| 12 X 3 | 0.28 | 40 X 20 | 5.3 |
| 16 X 3 | 0.38 | 45 X 6 | 2.1 |
| 16 X 5 | 0.63 | 45 X 10 | 3.5 |
| 20 X 3 | 0.47 | 50 X 3 | 1.2 |
| 20 X 5 | 0.79 | 50 X 5 | 2 |
| 20 X 6 | 0.94 | 50 X 6 | 2.4 |
| 25 X 6 | 1.18 | 50 X 8 | 3.1 |
| 25 X 10 | 2 | 50 X 10 | 3.9 |
| 25 X 12 | 2.4 | 50 X 12 | 4.7 |
| 30 X 5 | 1.18 | 50 X 16 | 6.3 |
| 30 X 6 | 1.41 | 50 X 20 | 7.8 |
| 30 X 10 | 2.4 | 50 X 25 | 9.8 |
| 30 X 12 | 2.8 | 65 X 6 | 3.1 |
| 30 X 16 | 3.8 | 65 X 8 | 4.1 |
| 35 X 6 | 1.6 | 65 X 10 | 5.1 |
| 35 X 10 | 2.8 | 65 X 12 | 6.1 |
| 35 X 12 | 3.3 | 65 X 16 | 8.2 |
| 35 X 16 | 4.4 | 65 X 20 | 10.2 |
| 40 X 3 | 0.94 | 65 X 25 | 12.8 |
| 40 X 5 | 1.6 | 65 X 32 | 16.3 |
| 40 X 6 | 1.88 | 75 X 25 | 13.8 |
| 40 X 10 | 3.1 | 75 X 6 | 3.5 |
| 40 X 12 | 3.8 | 75 X 8 | 4.7 |
| 40 X 16 | 5 | 75 X 10 | 5.9 |
| 75 X 12 | 5 | 100 X 32 | 25.1 |
| 75 X 16 | 9.4 | 125 X 6 | 5.9 |
| 75 X 20 | 11.8 | 125 X 10 | 9.8 |
| 75 X 25 | 14.7 | 125 X 12 | 11.8 |
| 75 X 32 | 18.8 | 130 X 10 | 10.2 |
| 80 X 25 | 20.1 | 150 X 10 | 11.8 |
| 100 X 6 | 4.7 | 150 X 12 | 14.1 |
| 100 X 10 | 7.8 | 150 X 16 | 18.8 |
| 100 X 12 | 9.4 | 150 X 20 | 23.6 |
| 100 X 16 | 12.6 | 150 X 25 | 29.5 |
| 100 X 20 | 15.7 | 180 X 20 | 28.3 |
| 100 X 25 | 19.6 |
